Self-Compacting Concrete

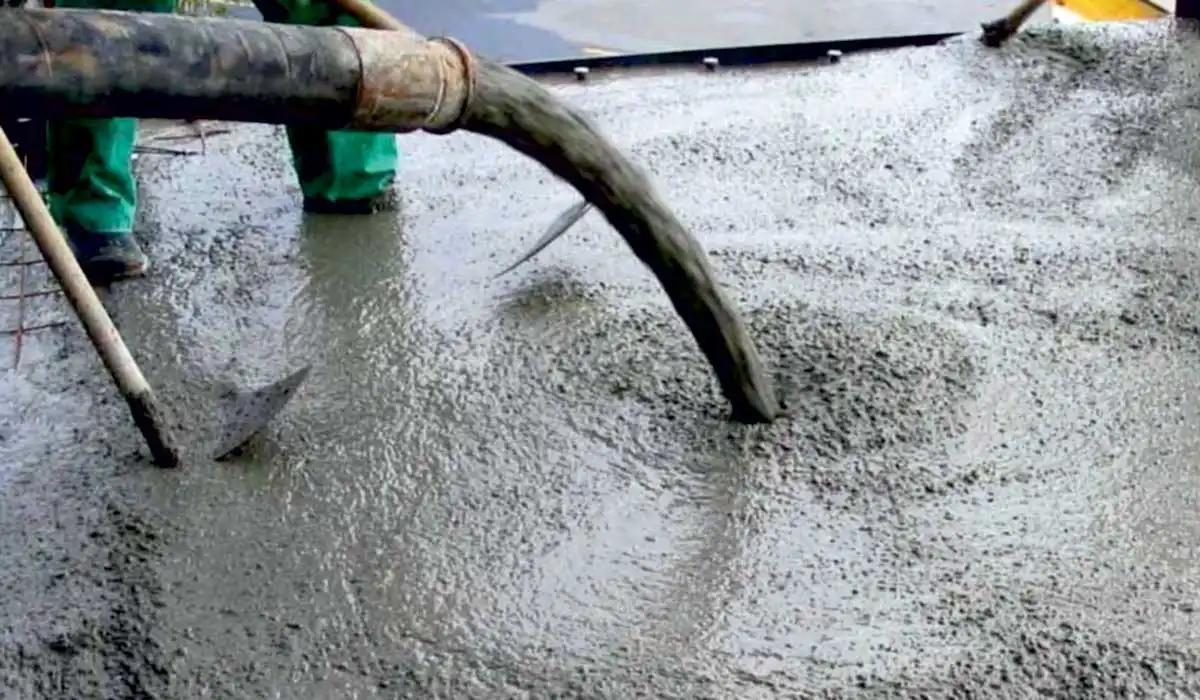

Self-compacting concrete (SCC) is a special type of concrete which can be placed and consolidated under its own weight without any vibratory effort due to its excellent deformability, which, at the same time, is cohesive enough to be handled without segregation or bleeding.
Kaushal Kishore, Materials Engineer, Roorkee

Workability

The workability of self-compacting concrete is measured by the usual slump cone having a base diameter of 200mm, top dia 100mm, and height 300mm. The slump cone is to be placed as usual upon a base plate square in shape and having at least a 700m side.

Concentric circles are marked around the center point where the cone is to be placed. A firm circle is drawn at 500mm diameter.

Procedure of Slump Flow Test

About 6 liters of concrete is needed for this test. Place the baseplate on the ground level and keep the slump cone centrally on the base plate. Fill the cone with scoop. Do not tap. Simply strike off the concrete level with the trowel. Remove the surplus concrete lying on the base plate. Raise the cone vertically and allow the concrete to flow freely at maximum distance. Measure the final diameter of the concrete in two perpendicular directions and calculate the average of the two diameters. This is the slump flow in mm. When the slump cone is lifted, T50 slump flow is taken for the concrete to reach a 500mm mark. Time should be measured by a stopwatch. It is suggested that the T50 time may be 2 to 5 seconds.

Self Compacting Concrete Benefits

Improves constructability
Labour reduction
Bond to reinforcing steel
Improved structural integrity
Accelerates project schedule
Reduces skilled labour
Flows into complex form
Reduces equipment wear
Minimizes void on highly reinforced areas
Produces superior surface finish
Superior strength and durability
Allows for easier pumping procedure
Fast placement without vibration or mechanical consolidation
Lowers noise levels produced by mechanical vibrators
Produces a uniform surface
Produces a wider variety of placement techniques.

Disadvantages of Self Compacting Concrete

Material selection is more strict
Construction cost increases compared with regular concrete
Many trial batches and laboratory tests are requested to use a designed mixture
Higher precision is required when measuring and monitoring.

Mix Design Consideration

While designing a concrete mix of self-compacting concrete, the following points should be taken into consideration:

The coarse aggregate may be 10, 12.5 or 20mm.
Coarse aggregate should be 45% and fine aggregate 55%.
Water 180 to 190 Kg/m3. Normally not to exceed 200 Kg/m3.
For M-60 and above grade concrete 10 percent of silica fume will be required.
No silica fume needed for M-25 to M-50 concrete but 20 to 30 percent good quality flyash will be needed.
Superplasticizer, polycarboxylic based 0.5 – 3 percent by weight of total cementious material.
Viscosity modifying agent, polymer based 0.1 – 0.5 percent by weight of total cementious material.

Mix Design

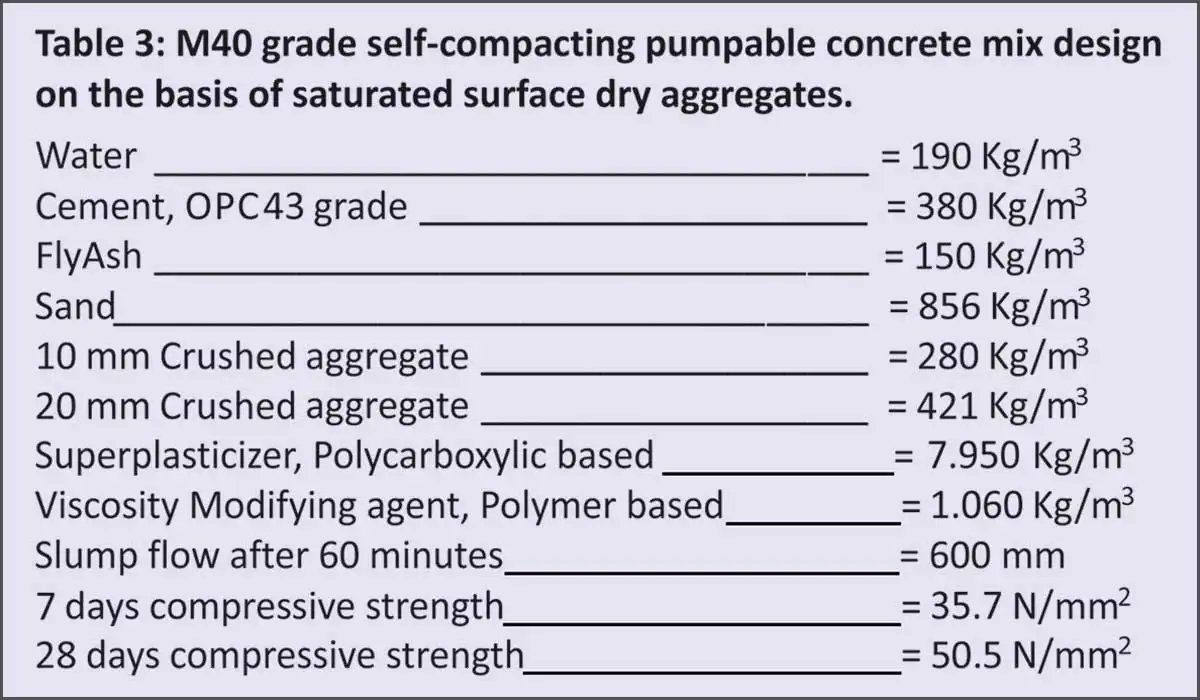

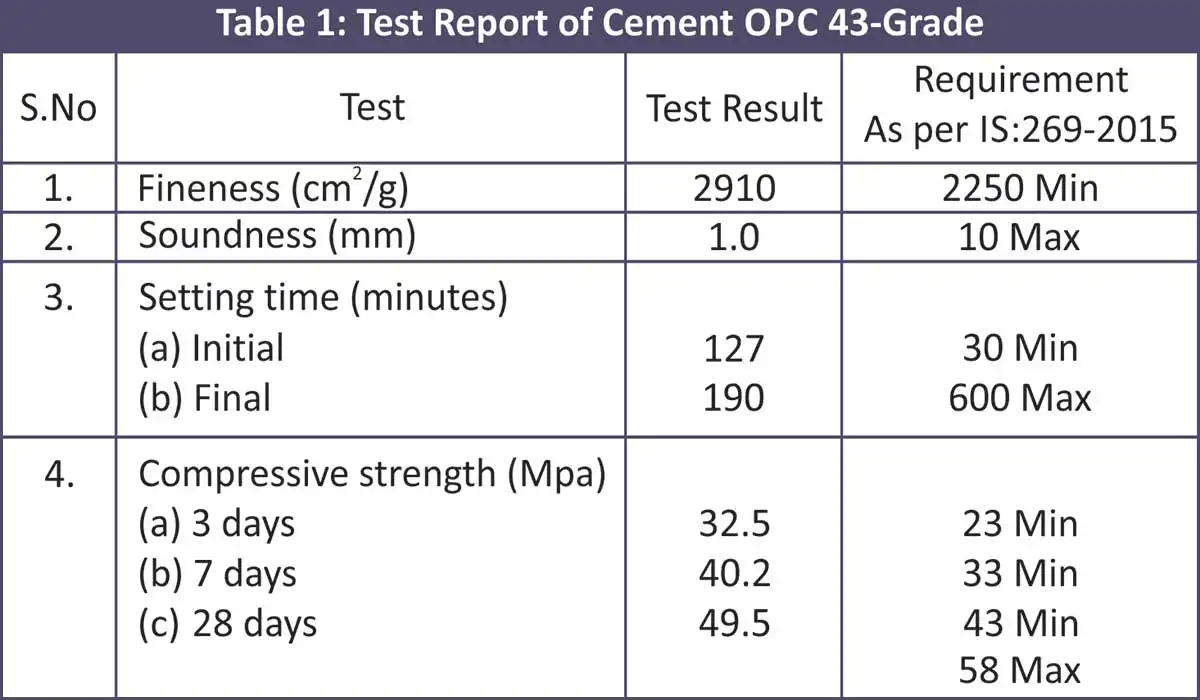

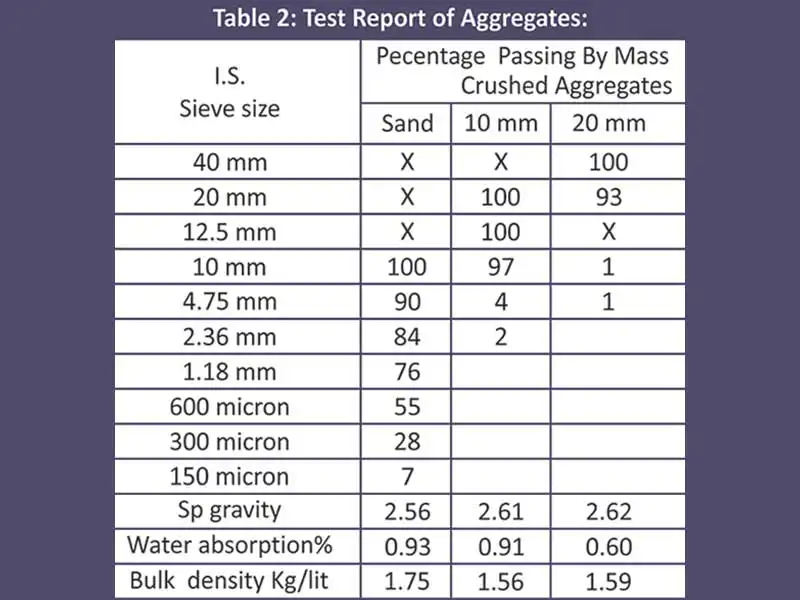

A M-40 grade self-compacting pumpable concrete is designed with cement and aggregate given in Tables 1 and 2. The mix design is given in Table 3. The mix design is carried out from reference 1.
